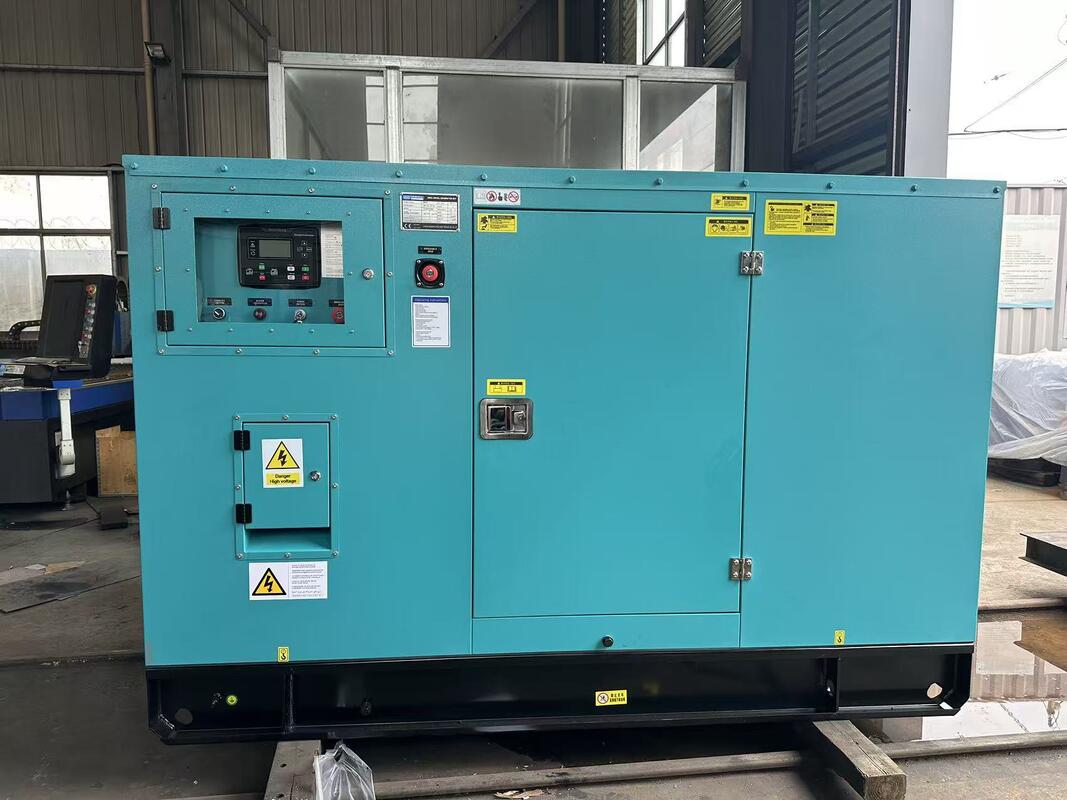

Powerful DCEC 50kVA Generator Set | Advanced Noise Reduction Technology

Powerful DCEC 50kVA Generator Set | Advanced Noise Reduction Technology

Nome da marca:	DCEC engine
Número do modelo:	MB-50
MOQ:	1 unidade
preço:	Price:Negotiable
Condições de pagamento:	Western Union, T/T, D/P, L/C.
Capacidade de abastecimento:	200 unidades/mês

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

China

Certificação:

ISO 9001:14000,CE,EACC

Marca::

Gerador diesel DCEC

Tensão nominal::

230V/400V

Modelo do motor::

4BTA3. 9-G2

Corrente nominal::

72a

Freqüência::

50Hz/60Hz

Marca do alternador::

MBKL / WUXI STANDFORD / STAMFORD / LEROY-SOMER

Painel de controle::

Deepsea / Harsen / Smartgen

Certificado::

ISO 9001: 14000, ce

ATS::

Opcional

Entrega::

7-30 dias

Tempo de garantia::

1 ano ou 1000 horas de execução (o que chegar primeiro)

Velocidade::

1500 rpm/1800 rpm

Detalhes da embalagem:

Plástico envolto em portadores de madeira como requisitos do consumidor. LCL, 20 pés e 40 pés estão

Habilidade da fonte:

200 unidades/mês

Destacar:

50kVA diesel generator set

DCEC generator with noise reduction

YUCHAI diesel generator 50kVA

Descrição do produto

DCEC 4BTA3. 9-G2 diesel generator sets features:

(1) . Full control panel with power indicator light and oil light.
(2). Emergency shutdown for low oil pressure and high water temperature.
(3). Large fuel tank ensure continuous running.
(4). Low noise & vibration.
(5). Compact structure.
(6). Reliable performance.
(7). Easy for installation and maintenance.

Painting materials
rust removing in pickling tank(10minutes)------unoil(30mins)-----rinsing(3mins)----wathsetting(10mins)----rinsing(5mins)-----parkerising(20mins)----rinsing----blow dry-----stoving----pylons----spray paint(adopt static flame paint)-----Oven(170degree/20mins)-----draw a charge---inserting coil.

Genset
Model	MB-40
Output Power	40KW/50KVA
Power Factor	COSΦ=0.8( lagging)
Maximum Output Current	72A
Silent type Weight	1150kg (Net)
Silent type Dimensions	23009501530mm
Voltage	400/230V
Frequency	50Hz
Diesel Engine
Manufacturer	DCEC Diesel Engine
Model	4BTA3. 9-G2
Rotate Speed	1500RPM
Power	50KW/55KW
Fuel Consumption	≤ 213g/kw.h
Cylinder/Stroke	102*120 mm
Compression Ratio	17.3:1
Displacement	3.9L
Configuration	4-cylinder in-line, four-stroke, water-to-air cooling
Cooling Mode	Liquid Cooled
Speed Control System	Electronic
Starting Mode	24V DC
Filter System	Dry air filter, fuel filter, oil filter
Alternator
Manufacturer	Changsha Mingbang Intelligent Technology Co.Ltd
Model	MBC22B
Voltage Control Mode	AVR (automatic voltage regulation)
Voltage Regulation	±1%
Rated Voltage/Frequency/Power Factors	400V/230V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire
Steady State Frequency	Better than 5%
No-load Voltage Adjust Range	≥95% - 105%
Insulation Class/Protection Class	H / IP22
Excitation Type	Brushless

Powerful DCEC 50kVA Generator Set | Advanced Noise Reduction Technology 0

Our factory

Mingbang Power Perkins Diesel Generating Set, power ranging from 45kVa up to 2250kVa. Perkins is the world's top engine brand, for more than 80 years, UK Perkins has been the world's leading supplier of diesel and gas engines in the 4 - 1800 kW market. Perkins key strength is its ability to tailor engines precisely to meet customers' requirements, which is why its engine solutions are trusted by more than 1,000 leading manufacturers in the industrial, construction, agricultural, materials handling and electrical power generation markets.

Our factory has CCEC, DCEC, PERKINS,MTU,Deutz, Daewoo, SDEC, Weichai,Jichai etc. World and Chinese famous engine for generators set. We have specialized in synchronous 100%copper wire alternator for more than 20 years. MB brand alternator has been expanded all over the world. The power range of our generator is from 6.5KW~2000KW.

Powerful DCEC 50kVA Generator Set | Advanced Noise Reduction Technology 3

New Powered By Yangdong Engine Prime Power 800kw Diesel Generator Set

Powerful DCEC 50kVA Generator Set | Advanced Noise Reduction Technology 4

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
