350KVA WEICHAI Diesel Generator Set with WP10D320E200 Engine and ISO 9001:14000,CE Certification

350KVA WEICHAI Diesel Generator Set with WP10D320E200 Engine and ISO 9001:14000,CE Certification

Nome da marca:	WEICHAI engine
Número do modelo:	MB-280
MOQ:	1pc
preço:	Price:Negotiable
Condições de pagamento:	Western Union, T/T, D/P, L/C.
Capacidade de abastecimento:	200pcs/mês

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

CHINA

Certificação:

ISO 9001:14000,CE,EACC

Nome da marca::

Gerador diesel WEICHAI 280KW

Tensão nominal::

230V/400V

Modelo do motor::

WP10D320E200

Corrente nominal::

504A

Freqüência::

50Hz/60Hz

Marca do alternador::

MBKL / WUXI STANDFORD / STAMFORD / LEROY-SOMER

Painel de controle::

Deepsea / Harsen / Smartgen

Certificado::

ISO 9001: 14000, ce

ATS::

Opcional

Entrega::

7-30 dias

Tempo de garantia::

1 ano ou 1000 horas de execução (o que chegar primeiro)

Velocidade::

1500rpm/1800rpm

Detalhes da embalagem:

Plástico envolto em portadores de madeira como requisitos do consumidor. LCL, 20 pés e 40 pés estão

Habilidade da fonte:

200pcs/mês

Destacar:

350KVA Diesel Generator Set

WEICHAI Engine WP10D320E200 Generator

ISO 9001:14000

CE Certified Generator

Descrição do produto

350KVA Generator Set with WEICHAI Engine WP10D320E200 - Silent Type Diesel Generator

Product Features

Full control panel with power indicator light and oil light
Emergency shutdown for low oil pressure and high water temperature
Large fuel tank ensures continuous running
Low noise & vibration operation
Compact structure design
Reliable performance
Easy installation and maintenance

Painting Process

Rust removal in pickling tank (10 minutes) → Unoil (30 mins) → Rinsing (3 mins) → Water setting (10 mins) → Rinsing (5 mins) → Parkerising (20 mins) → Rinsing → Blow dry → Stoving → Pylons → Spray paint (static flame paint) → Oven (170°C/20 mins) → Draw a charge → Inserting coil.

Generator Specifications

Model	MB-280
Output Power	280KW/350KVA
Power Factor	COSΦ=0.8 (lagging)
Maximum Output Current	504A
Weight	2100kg (Net)
Dimensions	3050 × 1040 × 1550mm
Voltage	400/230V
Frequency	50Hz

Diesel Engine Specifications

Manufacturer	Weichai Diesel Engine
Model	WP10D320E200
Rotate Speed	1500RPM
Power	320KW
Fuel Consumption	≤ 210g/kw.h
Cylinder/Stroke	126 × 130 mm
Compression Ratio	17:1
Displacement	9.726L
Configuration	6-cylinder in-line, four-stroke, water-to-air cooling
Cooling Mode	Liquid Cooled
Speed Control System	Electronic
Starting Mode	24V DC
Filter System	Dry air filter, fuel filter, oil filter

Alternator Specifications

Manufacturer	LEROY-SOMER Alternator
Model	TAL-A46-G
Voltage Control Mode	AVR (automatic voltage regulation)
Voltage Regulation	±1%
Rated Voltage/Frequency/Power Factors	400V/230V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire
Steady State Frequency	Better than 5%
No-load Voltage Adjust Range	≥95% - 105%
Insulation Class/Protection Class	H / IP22
Excitation Type	Brushless

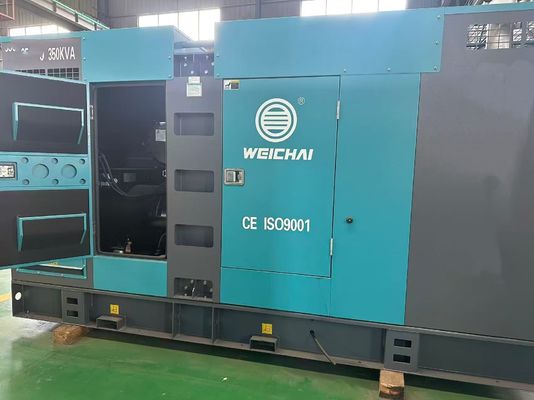

Product Images

Power Range Comparison

Rated Power	Engine	Alternator	Control Panel
24kw~1500kw	Cummins	Stamford, Leroy somer, Marathon, Mecc alte, ABB, Chinese alternators	Deepsea, ComAp, Harsen, Smartgen
36kw~1800kw	Perkins
68kw~560kw	Volvo
20kw~200kw	Deutz
40kw-2200kw	Yuchai
50kw-2200kw	Weichai
540kw-1900kw	Mitsubishi
50kw-800kw	SDEC
650kw~2200kw	Chinese engine

About Our Factory

Mingbang Power Perkins Diesel Generating Set offers power ranging from 45kVa up to 2250kVa. Perkins is the world's top engine brand, with over 80 years of experience as a leading supplier of diesel and gas engines in the 4 - 1800 kW market. Perkins' strength lies in its ability to tailor engines precisely to meet customers' requirements, trusted by more than 1,000 leading manufacturers across industrial, construction, agricultural, materials handling and electrical power generation markets.

Our factory features CCEC, DCEC, VOLVO, PERKINS, MTU, Deutz, Daewoo, SDEC, Weichai, Jichai and other world-renowned engines for generator sets. We specialize in synchronous 100% copper wire alternators with over 20 years of experience. The MB brand alternator has expanded worldwide, with power range from 6.5KW to 2000KW.

New Powered By Yangdong Engine Prime Power 800kw Diesel Generator Set

For more details about our diesel generator sets, please contact us anytime.

Your further inquiries are welcome!
