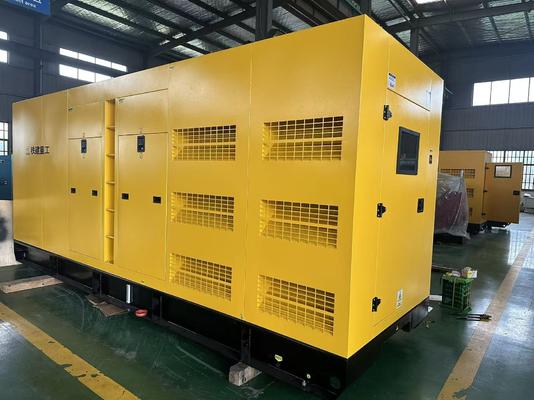

400kw Generator set Silent type Diesel Generator Set Power Generators with Yuchai Engine Good Quality

400kw Generator set Silent type Diesel Generator Set Power Generators with Yuchai Engine Good Quality

Nome da marca:	Yuchai engine
Número do modelo:	MB-400
MOQ:	1pc
preço:	Price:Negotiable
Condições de pagamento:	Western Union, T/T, D/P, L/C.
Capacidade de abastecimento:	200pcs/mês

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

CHINA

Certificação:

ISO 9001:14000,CE,EACC

Nome da marca::

Gerador diesel Yuchai 500KVA

Tensão nominal::

230V/400V

Modelo do motor::

YC6T660-D31

Corrente nominal::

720A

Freqüência::

50Hz/60Hz

Marca do alternador::

MBKL / WUXI STANDFORD / STAMFORD / LEROY-SOMER

Painel de controle::

Deepsea / Harsen / Smartgen

Certificado::

ISO 9001: 14000, ce

ATS::

Opcional

Entrega::

7-30 dias

Tempo de garantia::

1 ano ou 1000 horas de execução (o que chegar primeiro)

Velocidade::

1500rpm/1800rpm

Detalhes da embalagem:

Plástico envolto em portadores de madeira como requisitos do consumidor. LCL, 20 pés e 40 pés estão

Habilidade da fonte:

200pcs/mês

Descrição do produto

Yuchai YC6T660-D31 diesel generator sets features:

(1) . Full control panel with power indicator light and oil light.
(2). Emergency shutdown for low oil pressure and high water temperature.
(3). Large fuel tank ensure continuous running.
(4). Low noise & vibration.
(5). Compact structure.
(6). Reliable performance.
(7). Easy for installation and maintenance.

Painting materials
rust removing in pickling tank(10minutes)------unoil(30mins)-----rinsing(3mins)----wathsetting(10mins)----rinsing(5mins)-----parkerising(20mins)----rinsing----blow dry-----stoving----pylons----spray paint(adopt static flame paint)-----Oven(170degree/20mins)-----draw a charge---inserting coil.

Genset
Model	MB-400
Output Power	400KW /500KVA
Power Factor	COSΦ=0.8( lagging)
Maximum Output Current	720 A
Silent type Weight	5000KG
Silent type Dimensions	5200x1600x2200mm
Voltage	400/230
Frequency	50Hz
Diesel Engine
Manufacturer	YUCHAI Diesel Engine
Model	YC6T660-D31
Rotate Speed	1500RPM
Power	441/485KW
Fuel Consumption	≤195g/kw.h
Lubricating oil capacity	54L
Cylinder/Stroke	145×165 mm
Compression Ratio	15:1
Displacement	16.35
Configuration	6-cylinder in-line, four-stroke, water-to-air cooling
Cooling Mode	Liquid Cooled
Speed Control System	Electronic
Starting Mode	24V DC
Filter System	Dry air filter, fuel filter, oil filter
Alternator
Manufacturer	Changsha Mingbang Intelligent Technology Co.Ltd
Model	MBC5B
Voltage Control Mode	AVR (automatic voltage regulation)
Voltage Regulation	±1%
Rated Voltage/Frequency/Power Factors	400V/230V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire
Steady State Frequency	Better than 5%
No-load Voltage Adjust Range	≥95% - 105%
Insulation Class/Protection Class	H / IP22
Excitation Type	Brushless

Rated power	Engine	Alternator	Control panel
24kw~1500kw	Cummins	Stamford Leroy somer Marathon Mecc alte ABB Chinese alternators	Deepsea ComAp Harsen Smartgen
36kw~18+00kw	Perkins
68kw~560kw	Volvo
20kw~200kw	Deutz
40kw-2200kw	Yuchai
50kw-2200kw	Weichai
540kw-1900kw	Mitsubishi
50kw-800kw	SDEC
650kw~2200kw	Chinese engine

400kw Generator set Silent type Diesel Generator Set Power Generators with Yuchai Engine Good Quality 0

Our factory

Mingbang Power Perkins Diesel Generating Set, power ranging from 45kVa up to 2250kVa. Perkins is the world's top engine brand, for more than 80 years, UK Perkins has been the world's leading supplier of diesel and gas engines in the 4 - 1800 kW market. Perkins key strength is its ability to tailor engines precisely to meet customers' requirements, which is why its engine solutions are trusted by more than 1,000 leading manufacturers in the industrial, construction, agricultural, materials handling and electrical power generation markets.

Our factory has CCEC, DCEC, VOLVO, PERKINS,MTU,Deutz, Daewoo, SDEC, Weichai,Jichai etc. World and Chinese famous engine for generators set. We have specialized in synchronous 100%copper wire alternator for more than 20 years. MB brand alternator has been expanded all over the world. The power range of our generator is from 6.5KW~2000KW.

400kw Generator set Silent type Diesel Generator Set Power Generators with Yuchai Engine Good Quality 3

New Powered By Yangdong Engine Prime Power 800kw Diesel Generator Set

400kw Generator set Silent type Diesel Generator Set Power Generators with Yuchai Engine Good Quality 4

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
