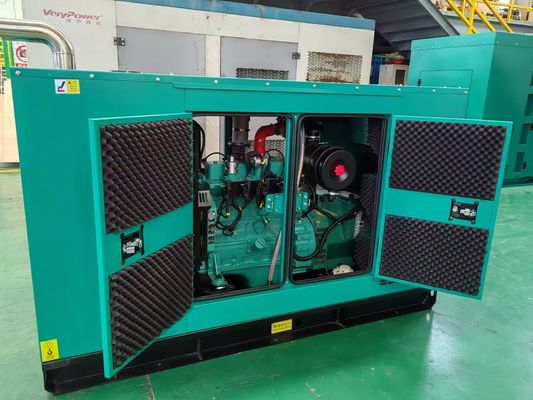

Weichai GAS Engine WP6D100E300NG Open/Silent Diesel Generator Set 75KW/94KVA Power solution power generators

Weichai GAS Engine WP6D100E300NG Open/Silent Diesel Generator Set 75KW/94KVA Power solution power generators

Nome da marca:	Weichai engine
Número do modelo:	MB-50
MOQ:	1pc
preço:	Price:Negotiable
Condições de pagamento:	Western Union, T/T, D/P, L/C.
Capacidade de abastecimento:	200pcs/mês

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

CHINA

Certificação:

ISO 9001:14000,CE,EACC

Nome da marca::

SET DE GENERADOR DE GAS DE WEICHAI

Modelo do motor::

Wp6d100e300ng

Potência de Genset:

75kw/94kva

Tensão nominal::

230V/400V

Corrente nominal::

90A

Freqüência::

50Hz/60Hz

Alternador::

Leroy-Somer/ Wuxi Stanford

Painel de controle::

Deepsea / Harsen / Smartgen

Certificado::

ISO 9001: 14000, ce

ATS::

Opcional

Entrega::

7-30 dias

Tempo de garantia::

1 ano

Dimensão do Genset::

5000 × 2150 × 2500mm

Peso do Genset::

7000kgs

Velocidade::

1500rpm/1800rpm

Detalhes da embalagem:

Plástico envolto em portadores de madeira como requisitos do consumidor. LCL, 20 pés e 40 pés estão

Habilidade da fonte:

200pcs/mês

Destacar:

GAS Engine Diesel Generator set

Silent Diesel Generator set 75KW

silent Diesel Generator set 94KVA

Descrição do produto

Weichai Engine WP6D100E300NG GAS generator sets features:

(1) . Full control panel with power indicator light and oil light.
(2). Emergency shutdown for low oil pressure and high water temperature.
(3). Large fuel tank ensure continuous running.
(4). Low noise & vibration.
(5). Compact structure.
(6). Reliable performance.
(7). Easy for installation and maintenance.

Painting materials
rust removing in pickling tank(10minutes)------unoil(30mins)-----rinsing(3mins)----wathsetting(10mins)----rinsing(5mins)-----parkerising(20mins)----rinsing----blow dry-----stoving----pylons----spray paint(adopt static flame paint)-----Oven(170degree/20mins)-----draw a charge---inserting coil.

Genset Parameters

Genset
Model	MB-75
Output Power	75KW/94KVA
Power Factor	COSΦ=0.8(lagging)
Maximum Output Current	135 A
Weight	1200KG
Silent Genset Dimensions	2200×800×1200mm
Voltage	400/230
Frequency	50Hz
Gas Engine
Manufacturer	Weichai Gas engine
Model	WP6D100E300NG
Rotate Speed	1500RPM
Power	80 KW
Fuel Consumption	≤198 g/kw.h
Cylinder/Stroke	105*130 mm
Configuration	4 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling Mode	Closed circuit water cooling
Speed Control System	Electronic Govenor
Starting Mode	24V DC
Filter System	Dry air filter, fuel filter, oil filter
Alternator
Manufacturer	Wuxi Stanford Intelligent Technology Co.Ltd
Model	STUC-80
Voltage Control Mode	AVR (automatic voltage regulation)
Voltage Regulation	±1%
Rated Voltage/Frequency/Power Factors	400V/230V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire
Steady State Frequency	Better than 5%
No-load Voltage Adjust Range	≥95% - 105%
Insulation Class/Protection Class	H / IP22
Excitation Type	Brushless

Rated power	Engine	Alternator	Control panel
24kw~1500kw	Cummins	Stamford Leroy somer Marathon Mecc alte ABB Chinese alternators	Deepsea ComAp Harsen Smartgen
36kw~18+00kw	Perkins
68kw~560kw	Volvo
20kw~200kw	Deutz
40kw-2200kw	Yuchai
50kw-2200kw	Weichai
540kw-1900kw	Mitsubishi
50kw-800kw	SDEC
650kw~2200kw	Chinese engine

Weichai GAS Engine WP6D100E300NG Open/Silent Diesel Generator Set 75KW/94KVA Power solution power generators 0

Our factory

Mingbang Power Perkins Diesel Generating Set, power ranging from 45kVa up to 2250kVa. Perkins is the world's top engine brand, for more than 80 years, UK Perkins has been the world's leading supplier of diesel and gas engines in the 4 - 1800 kW market. Perkins key strength is its ability to tailor engines precisely to meet customers' requirements, which is why its engine solutions are trusted by more than 1,000 leading manufacturers in the industrial, construction, agricultural, materials handling and electrical power generation markets.

Our factory has CCEC, DCEC, VOLVO, PERKINS,MTU,Deutz, Daewoo, SDEC, Weichai,Jichai etc. World and Chinese famous engine for generators set. We have specialized in synchronous 100%copper wire alternator for more than 20 years. MB brand alternator has been expanded all over the world. The power range of our generator is from 6.5KW~2000KW.

Weichai GAS Engine WP6D100E300NG Open/Silent Diesel Generator Set 75KW/94KVA Power solution power generators 3

New Powered By Yangdong Engine Prime Power 800kw Diesel Generator Set

Weichai GAS Engine WP6D100E300NG Open/Silent Diesel Generator Set 75KW/94KVA Power solution power generators 4

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
