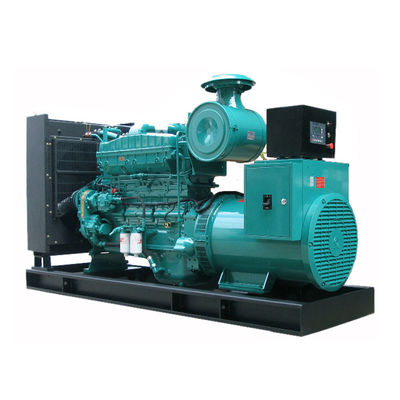

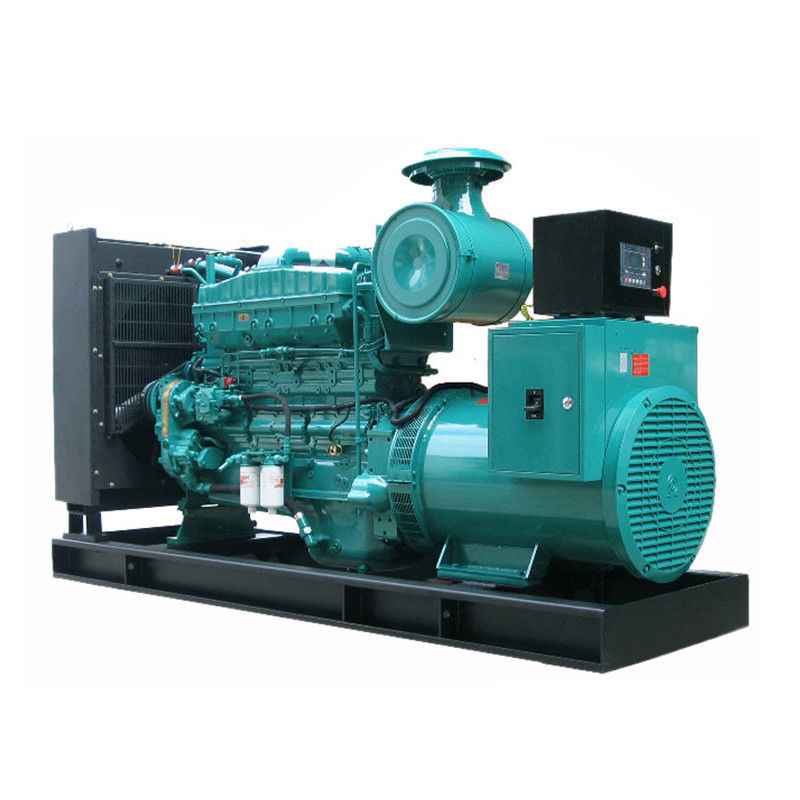

Cummins M15-G8 engine Diesel Generators Brushless 504KW/630KVA genset

Cummins M15-G8 engine Diesel Generators Brushless 504KW/630KVA genset

Nome da marca:	Cummins
Número do modelo:	M15-G8
MOQ:	1PC
preço:	Price:Negotiable
Condições de pagamento:	Western Union,T/T,D/P,L/C
Capacidade de abastecimento:	200pcs/month

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Place of Origin:

China

Certificação:

ISO 9001:14000,CE,EACC

Place of Origin::

Jiangsu China

Brand Name::

Rated Voltage::

230V/400V

Engine Model::

Cummins M15-G8

Rated Current::

907 A

Frequency::

50Hz/60Hz

Alternator::

MBC5D

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty time::

1 year

Genset Dimension::

5000×2300×2650mm

Genset Weight::

14000kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-504

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Descrição do produto

High Quality Brushless Diesel Generator Sets With Cummins Engine 458/504KW Smartgen Control System Open/Soundproof Type

Genset Parameters

Genset
Model	MB-504
Output Power	504KW/630KVA
Power Factor	COSΦ=0.8(滞后)
Maximum Output Current	907 A
Weight	6100KG
Dimensions	4700×2100×2450mm
Voltage	400/230
Frequency	50Hz
Diesel Engine
Manufacturer	Cummins Diesel Engine
Model	M15-G8
Rotate Speed	1500RPM
Power	458/504KW
Fuel consumption	≤206g/kw.h
Lube Oil Capacity	52 L
Cylinder/Stroke	135×169 mm
Compression Ratio	23:1
Gas Displacement	14.5L
Configuration	6-cylinder In-line, four-stroke, water-to-air cooling
Cooling Mode	Liquid Cooled
Speed Control System	Electronic
Starting Mode	24V DC
Filter System	Dry air filter, fuel filter, oil filter
Alternator
Manufacturer	Changsha Mingbang Intelligent Technology Co.Ltd
Model	MBC5D
Voltage Control Mode	AVR (automatic voltage regulation)
Voltage Regulation	±1%
Rated Voltage/Frequency/Power Factors	400V/230V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire
Steady State Frequency	Better than 5%
No-load Voltage Adjust Range	≥95% - 105%
Insulation Class/Protection Class	H / IP22
Excitation Type	Brushless

Main Features
1)Easy operation,simple maintenance, Low cost.

2) Compact structure, high-strength chassis,beautiful design.

3) Good performance damping system, coperate more conveniently.

4) Compliance with international electrical safety standards of electrical system.

5) continue running 8 hours base tank.

6) High-performance maintenance-free batteries with isolation switch,it is more safety.

7) 50℃ radiator .

8) Forklift bottom hole design, easy to transport.

9) Industrial type muffler.

10) Noise reduction structure,Low overall noise.

11) Convenient power output interface and ATS Interface,satisfy customer's requires.

12) IP56 (control system).

13)The personalized design for user.

Mingbang Diesel Generator Set Factory

Cummins M15-G8 engine Diesel Generators Brushless 504KW/630KVA genset 0

About MingBang Intelligent Technology

Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai

Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,
Volvoand Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with
Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,and so on. Key diesel
generator stock ranges from 10KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.

Whether you require support for an office, residential development ,industrial development or
shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will
support you the most reliable and most cost-efficient generators and accessories.
Weclome to visit our factory!

Our customers

More details for diesel generator sets ,please contact us any time

Welcome to orders~
